Waveguide Attenuator

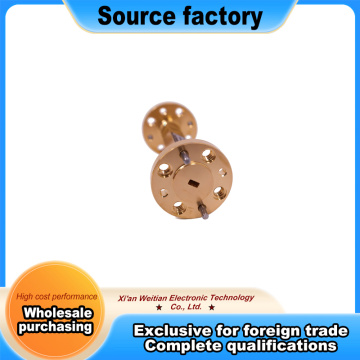

Fixed waveguide attenuators provide stable and consistent attenuation across their operating frequency bands. They offer excellent impedance matching and low voltage standing wave ratio, ensuring minimal signal reflection. These attenuators are used for decoupling matching in microwave systems, level control, and reference level setting in high frequency substitution measurement methods. The attenuation value is stable and controllable, making them reliable for system calibration and signal conditioning. The wide bandwidth adaptability allows them to function across multiple frequency bands without significant performance variation.

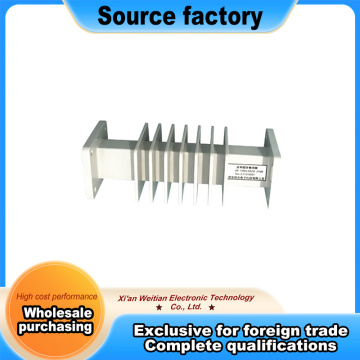

High power waveguide attenuators are designed to handle higher average power levels while maintaining good electrical performance. These attenuators use special absorbing materials and optimized thermal management to dissipate heat efficiently. They are suitable for applications requiring higher power handling where standard attenuators would be inadequate. The robust construction ensures long term reliability even under demanding conditions. These attenuators are commonly used in radar systems, communication transmitters, and high power test laboratories.

Coupled waveguide attenuators offer precise attenuation with the ability to handle higher power levels compared to standard fixed attenuators. The frequency response is typically flat across the operating band, ensuring uniform attenuation at all frequencies within the range. This makes them suitable for broadband signal control in high precision measurement applications. Some coupled attenuators are designed for unidirectional high power operation, which reduces size, weight, and cost by eliminating one High Power Load. However, proper installation orientation must be observed to prevent damage to the low power side components.

Variable waveguide attenuators allow adjustable attenuation levels to accommodate changing system requirements. They provide continuous or stepwise adjustment of attenuation values across a specified range. These attenuators feature good impedance matching and wide operating bandwidth. The adjustable nature makes them versatile for various test and measurement scenarios where different attenuation levels are needed. They are essential for system optimization, signal level adjustment, and dynamic range control in both laboratory and field applications.

Professional users across communication systems, radar systems, and microwave measurement fields rely on waveguide attenuators for signal management. These components are essential for power balancing, system calibration, signal simulation, interference suppression, and device protection. Whether for low power measurement setups or high power transmission systems, waveguide attenuators provide the controlled signal reduction needed for optimal system performance. The combination of precision manufacturing, quality materials, and careful electrical design ensures consistent and reliable operation across demanding applications.
