WR10 Fixed Waveguide Attenuator

WR10 Fixed Waveguide Attenuator for millimeter wave Measurement and Calibration

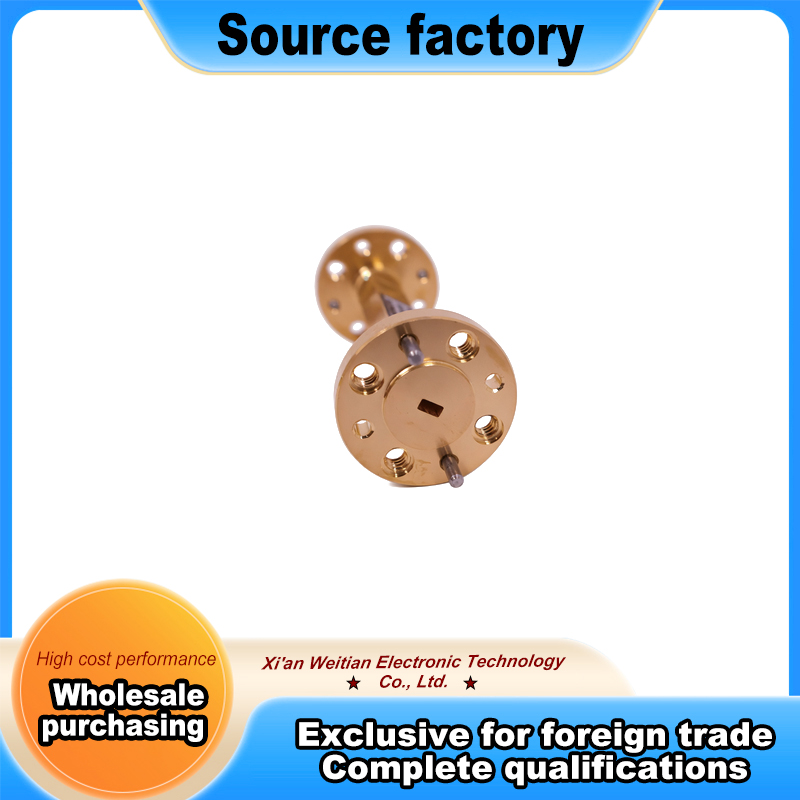

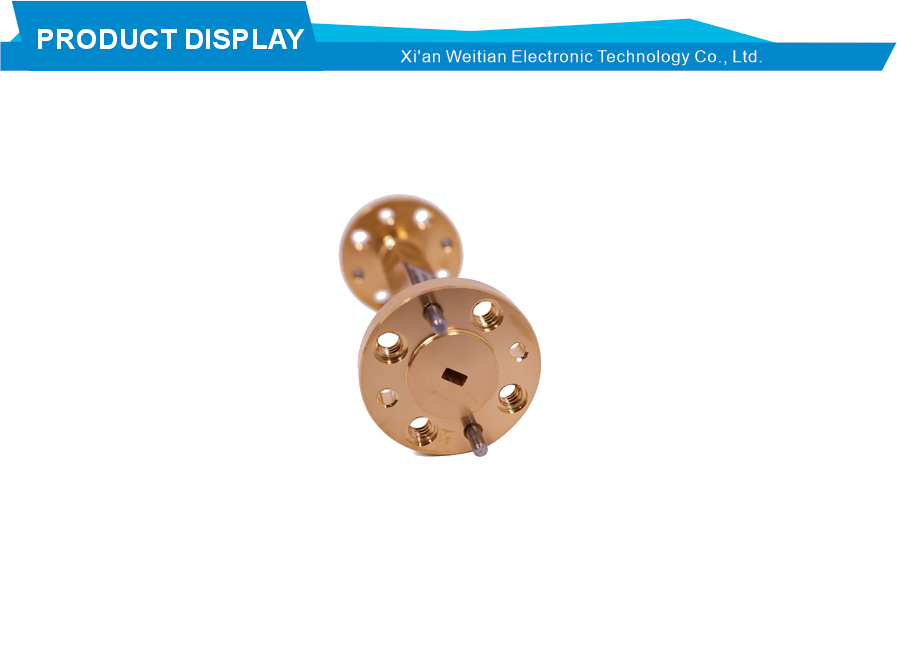

This product is a professional Waveguide Attenuator featuring a fixed attenuation design for millimeter wave applications. The attenuator operates across the 75GHz to 110GHz frequency band in the WR10 waveguide size and is constructed from copper with gold plating for excellent conductivity and corrosion resistance. As a Fixed Waveguide Attenuator, it provides stable and consistent attenuation across its operating band with minimal signal reflection. The component features a FUGP900 flange interface for compatibility with standard WR10 waveguide systems. This attenuator is essential for decoupling matching, level control, and reference level setting in microwave and millimeter wave measurement systems.

This Fixed Waveguide Attenuator delivers excellent electrical performance across its operating frequency range. The Voltage Standing Wave Ratio is rated at 1.25 or lower, ensuring good impedance matching with minimal signal reflection. The attenuation value is 6dB with a tolerance of plus or minus 4dB, providing controlled signal reduction for measurement and calibration applications. The average power handling is suitable for low power signal processing in test and measurement setups. The gold plated copper construction provides superior conductivity and protects against oxidation, ensuring long term reliability at millimeter wave frequencies.

One clear strength of this Fixed Waveguide Attenuator is its suitability for precision measurement and calibration applications at millimeter wave frequencies. It is widely used for signal power balancing, measurement system calibration, signal simulation, clutter and interference suppression, and device protection. Common applications include communication systems, radar systems, and microwave measurement fields. The standard FUGP900 flange interface ensures compatibility with common WR10 waveguide components.

In practical use, this Fixed Waveguide Attenuator handles professional millimeter wave measurement tasks very well. For test laboratories, it provides reliable reference level setting for high frequency substitution measurements. For calibration facilities, it serves as a stable attenuation standard for system verification. The robust copper construction with gold plating provides excellent durability and conductivity at millimeter wave frequencies. Custom options are available for attenuation value, frequency band, and finish upon request. This Fixed Waveguide Attenuator stands as a solid example of a well designed attenuation solution for millimeter wave measurement and calibration applications.
