Circular Waveguide To Coaxial Adapter for Ka Band Signal Interface

Circular waveguide systems offer advantages in polarization handling and rotary applications, but connecting them to standard coaxial test equipment creates a problem. Engineers struggle with impedance mismatches, lack of compatible connectors, and the need for bulky adapter assemblies. The signal quality degrades at the transition point, and measurement accuracy suffers.

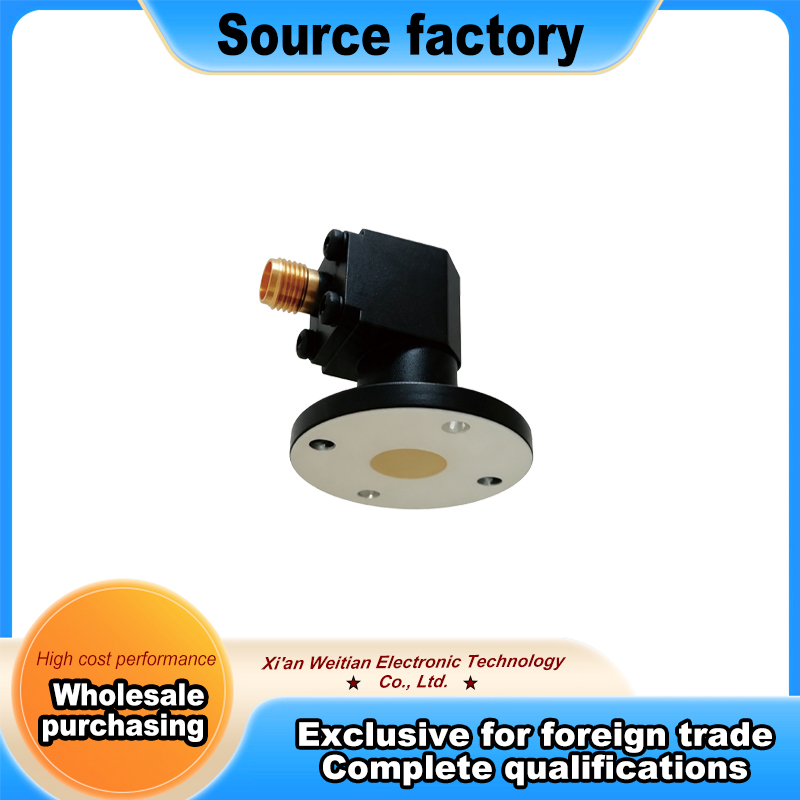

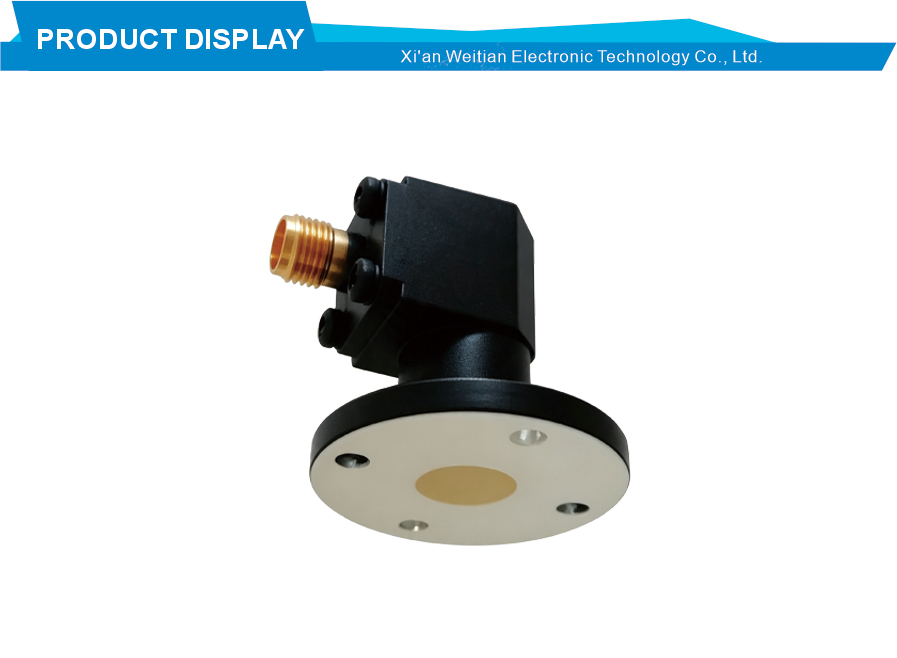

The Circular Waveguide Coaxial Adapter solves this issue. As a Waveguide To Coaxial Adapter, it provides seamless transition between circular waveguide and 2.92-K coaxial interface. It covers the 27.5GHz to 31GHz Ka band with low VSWR and low insertion loss. The copper body with silver plating ensures good conductivity and corrosion resistance. The adapter works as both an interface bridge and a performance assurance device.

This adapter features an 8.3mm circular waveguide port and a 2.92-K female connector. The 0.5dB insertion loss and 1.3 VSWR deliver clean signal transmission. The compact design fits tight spaces. Power handling suits typical test and measurement applications. Works with standard circular waveguide components and coaxial test cables.

Ideal for Satellite Communication ground stations, Ka band radar systems, test and measurement laboratories, R&D teams developing circular waveguide components, and defense applications requiring circular to coaxial interface.

→ Satellite ground station feed → Circular Coax Adapter → Clean transition between circular feed network and coaxial LNA
→ Ka band radar testing → Circular Coax Adapter → Direct connection to spectrum analyzers
→ R&D component characterization → Circular Coax Adapter → Quick VNA interface for circular waveguide devices
→ Communication system integration → Circular Coax Adapter → Reliable link between circular filters and coaxial amplifiers
→ EW system test → Circular Coax Adapter → Flexible interface between circular antennas and coaxial receivers

Custom options available for connector type, material, and finish.

FAQ

Q1: Can this adapter be customized for other circular waveguide sizes or connector types?
A1: Yes. We support BY8 to BY330 circular waveguide sizes and various connector types including SMA-K, N-K, and 2.4-K.

Q2: What is the difference between circular and rectangular waveguide adapters?
A2: Circular adapters interface with circular waveguide systems used in polarization-sensitive and rotary applications; rectangular adapters are for standard rectangular waveguide.

Q3: Is silver plating necessary for Ka band performance?
A3: Silver plating provides low surface resistance at Ka band, minimizing insertion loss and ensuring signal integrity at higher frequencies.
