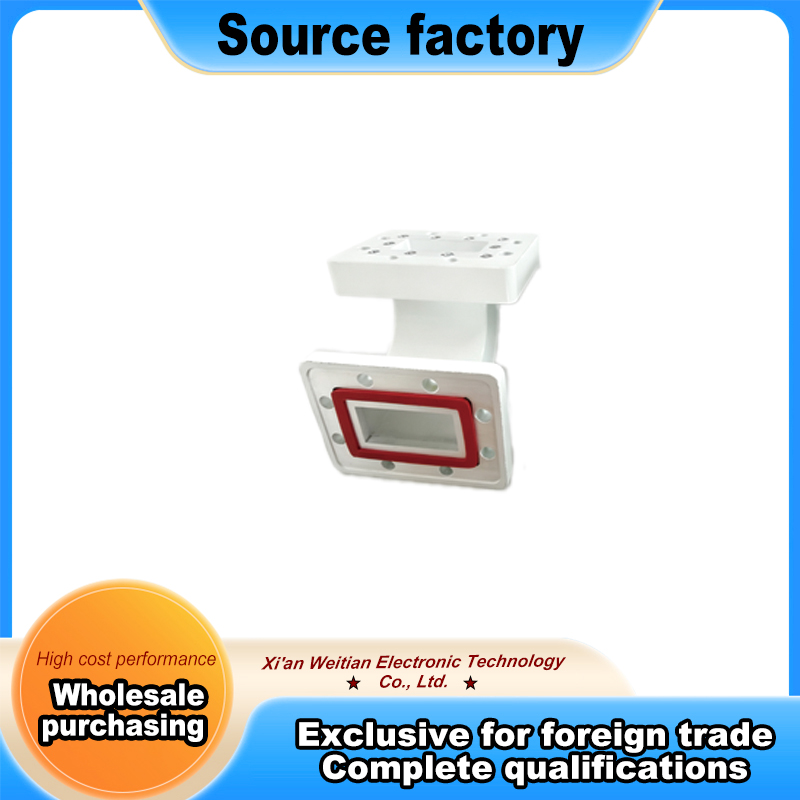

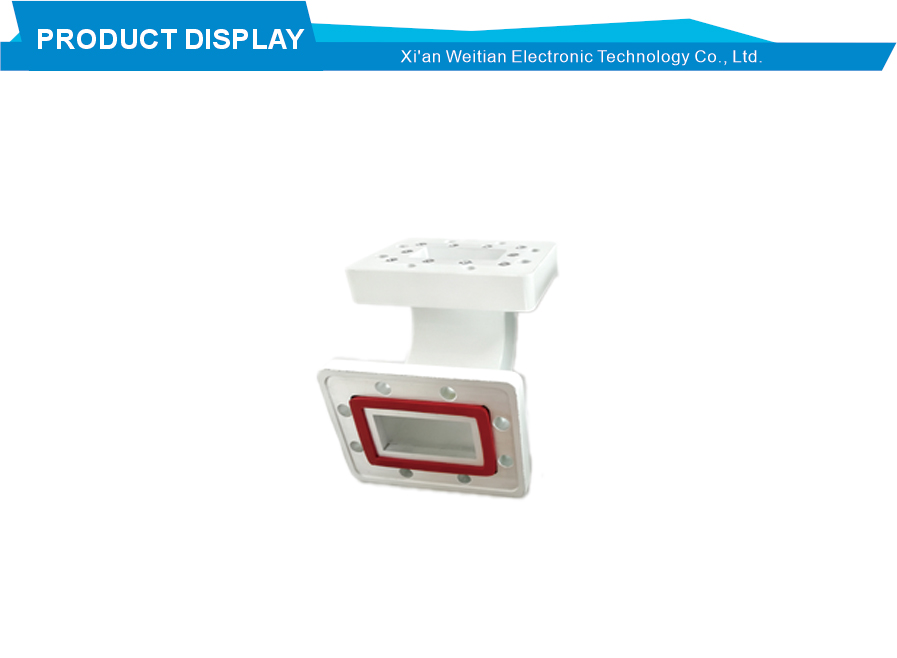

5.38-8.17GHz Waveguide Bend Pressure Window for C Band RF System Hermetic Sealing

This product is a professional Waveguide Pressure Window featuring an integrated bend design for hermetic sealing in Pressurized Waveguide systems. The window operates across the 5.38GHz to 8.17GHz frequency band in the C band range and is constructed from aluminum with conductive oxidation finish and white paint coating for excellent durability and corrosion resistance. As a Waveguide Pressure Window, it provides high air tightness to prevent moisture, dust, and salt spray from entering the waveguide while maintaining superior RF transmission performance. The bend configuration allows the window to change signal direction while providing hermetic sealing, making it ideal for space constrained installations where both direction change and environmental protection are required. This component is essential for protecting sensitive internal components from environmental contamination that could degrade system performance in demanding applications.

This Waveguide Bend Pressure Window delivers excellent electrical performance across its operating frequency range. The Voltage Standing Wave Ratio is rated at 1.25 or lower, ensuring good impedance matching with minimal signal reflection. The insertion loss is very low at 0.2dB, allowing RF signals to pass through the window with minimal attenuation. The average power handling is suitable for medium power transmission applications. The pressure rating is designed for pressurized waveguide systems and can withstand demanding operational conditions. The aluminum construction with conductive oxidation and white paint coating provides good mechanical strength and protects against corrosion and environmental exposure. The wide temperature stability ensures reliable operation in demanding environments ranging from extreme cold to high heat. The bend design adds mechanical rigidity while maintaining the compact form factor.

One clear strength of this Waveguide Bend Pressure Window is its ability to combine direction change and hermetic sealing in a single integrated component. It is widely used in military radar systems including weather radar, air defense radar, ground based radar, and shipboard radar to prevent salt spray and moisture ingress while routing signals around obstacles. In Satellite Communication and aerospace applications, it prevents moisture ingress and maintains hermetic isolation in vacuum and radiation environments. For 5G and 6G millimeter wave communication systems, the bend design allows flexible outdoor installation while providing sealing against rain water and sand ingress. In scientific instruments such as vacuum chambers and plasma equipment, this window allows RF signals to penetrate at angles while maintaining vacuum integrity. In specialized and extreme environments, it provides protection against salt spray and fungal growth for maritime microwave communication and radar systems.

In practical use, this Waveguide Bend Pressure Window handles professional system protection tasks very well. For radar systems operating in harsh coastal environments, it prevents salt spray corrosion that could damage internal components while routing signals through tight spaces. For satellite ground stations, it maintains hermetic isolation while fitting into existing waveguide layouts. For microwave test platforms, it provides reliable sealing during measurements in confined spaces. The standard flange interfaces including FDP, FDM, FBP, FBM, and FUGP types ensure compatibility with mainstream waveguide systems. The robust construction withstands significant pressure differentials and vibration. Custom options are available for frequency, power handling, pressure rating, dimensions, and special coatings for corrosion resistance or radiation protection. This Waveguide Bend Pressure Window stands as a solid example of a well designed hermetic sealing solution that combines direction change and environmental protection in a single component.
