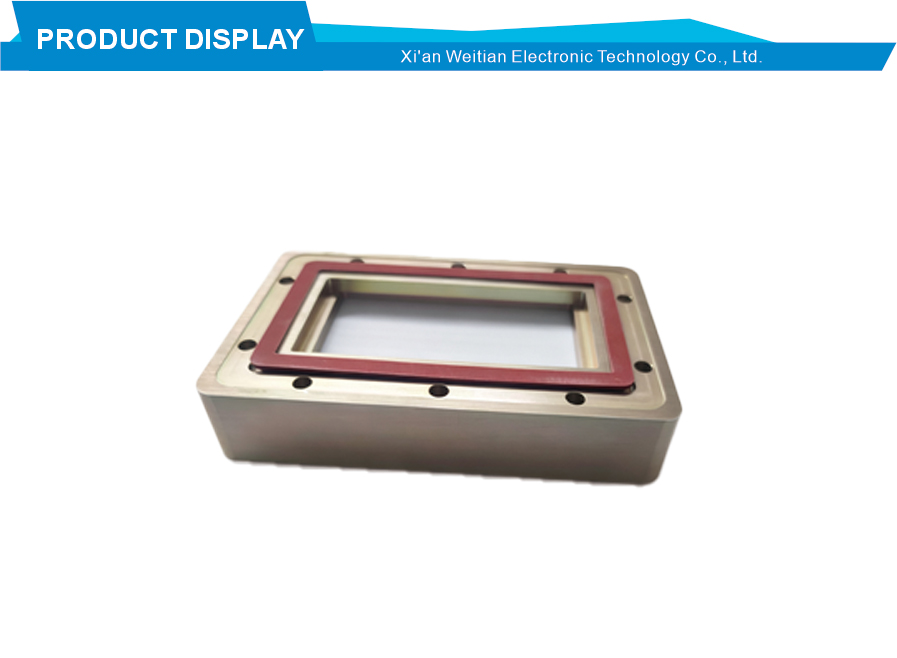

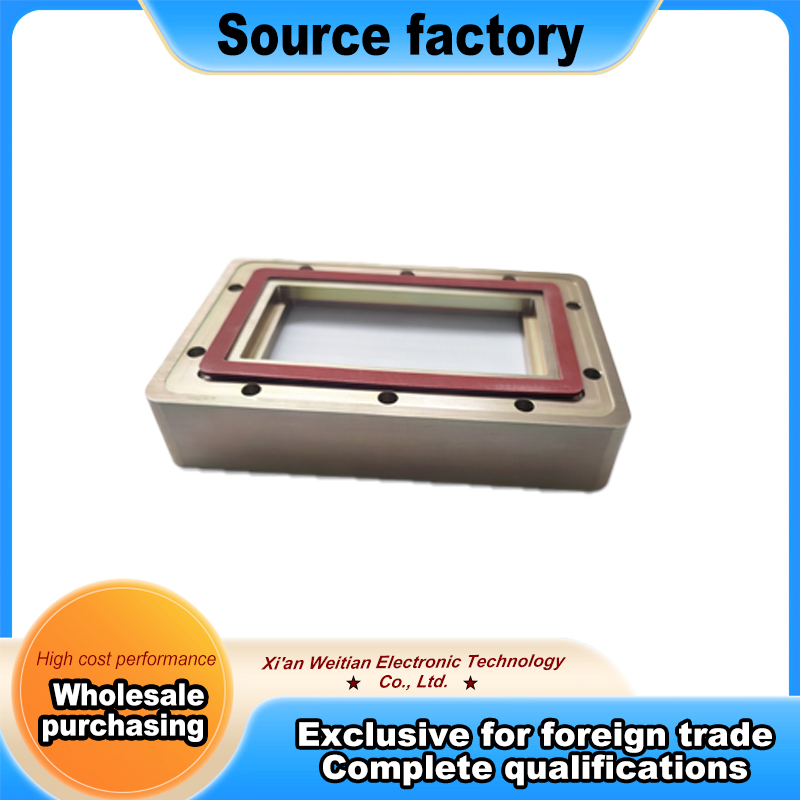

3.94-5.99GHz Waveguide Pressure Window for High Power RF System Hermetic Sealing

This product is a professional Waveguide Pressure Window designed for hermetic sealing between waveguide flanges in pressurized systems. The window operates across the 3.94GHz to 5.99GHz frequency band and is constructed from aluminum with conductive oxidation and sea grey paint finish for durability and corrosion resistance. As a Waveguide Pressure Window, it provides high air tightness to prevent moisture, dust, and salt spray from entering the waveguide while maintaining excellent RF transmission performance. This component is essential for protecting sensitive internal components from environmental contamination that could degrade system performance.

This Waveguide Pressure Window delivers excellent electrical performance across its operating frequency range. The Voltage Standing Wave Ratio is rated at 1.25 or lower, ensuring good impedance matching with minimal signal reflection. The insertion loss is very low, allowing RF signals to pass through the window with minimal attenuation. The pressure rating is suitable for Pressurized Waveguide systems and vacuum chamber applications. The compact and lightweight design supports various standard waveguide types including rectangular, flat rectangular, square, circular, and double ridged configurations. The aluminum construction with conductive oxidation provides good mechanical strength and corrosion resistance. The sea grey paint finish offers additional environmental protection. The wide temperature stability ensures reliable operation in demanding environments ranging from extreme cold to high heat.

One clear strength of this Waveguide Pressure Window is its ability to maintain hermetic sealing while preserving RF performance. It is widely used in military radar systems including weather radar, air defense radar, ground based radar, and shipboard radar to prevent salt spray and moisture ingress, ensuring long term stability in coastal and field environments. In satellite communication and aerospace applications, it prevents moisture ingress and maintains hermetic isolation in vacuum and radiation environments to protect link stability. For 5G and 6G millimeter wave communication systems, outdoor sealing prevents rain water and sand ingress, ensuring low loss transmission of high frequency signals. In scientific instruments such as vacuum chambers, particle accelerators, and plasma equipment, this window allows RF signals to penetrate while maintaining vacuum integrity.

In practical use, this Waveguide Pressure Window handles professional system protection tasks very well. For radar systems operating in harsh coastal environments, it prevents salt spray corrosion that could damage internal components. For satellite ground stations, it maintains hermetic isolation to protect sensitive receivers from moisture ingress. For microwave test platforms, it provides reliable sealing during high power measurements. The standard flange interfaces including FDP, FDM, FBP, FBM, and FUGP types ensure compatibility with mainstream waveguide systems. The robust construction withstands significant pressure differentials and vibration, making this window suitable for airborne, spaceborne, and shipboard applications. Custom options are available for frequency, power handling, pressure rating, dimensions, and special coatings for corrosion resistance or radiation protection. This Waveguide Pressure Window stands as a solid example of a well designed hermetic sealing solution for demanding RF environments.
