Non Adjacent Waveguide Adapter

WR112 to WR51 Non Adjacent Rectangular to Rectangular Waveguide Adapter for Ku Band

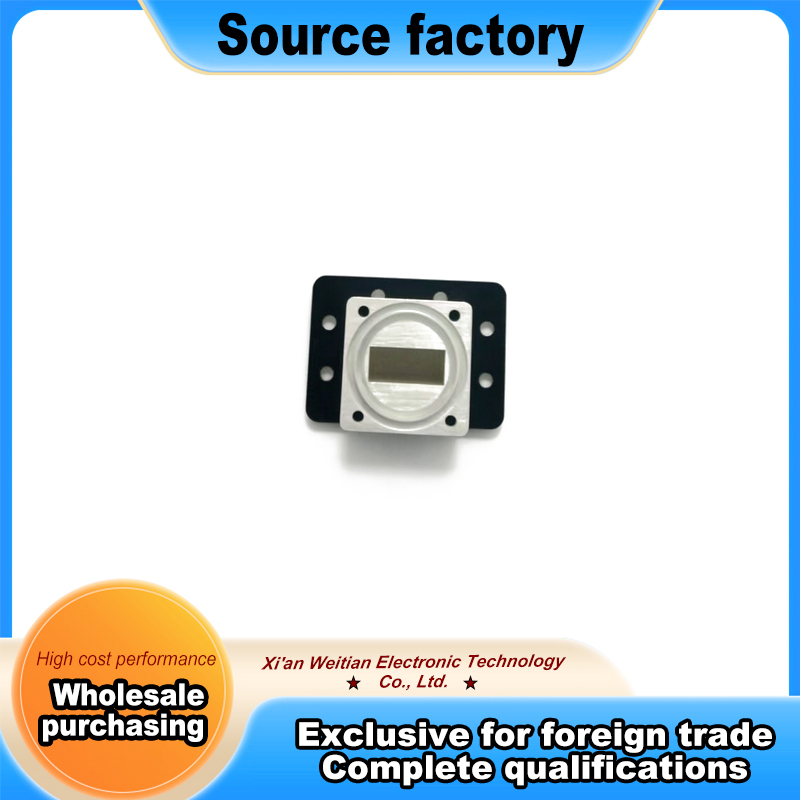

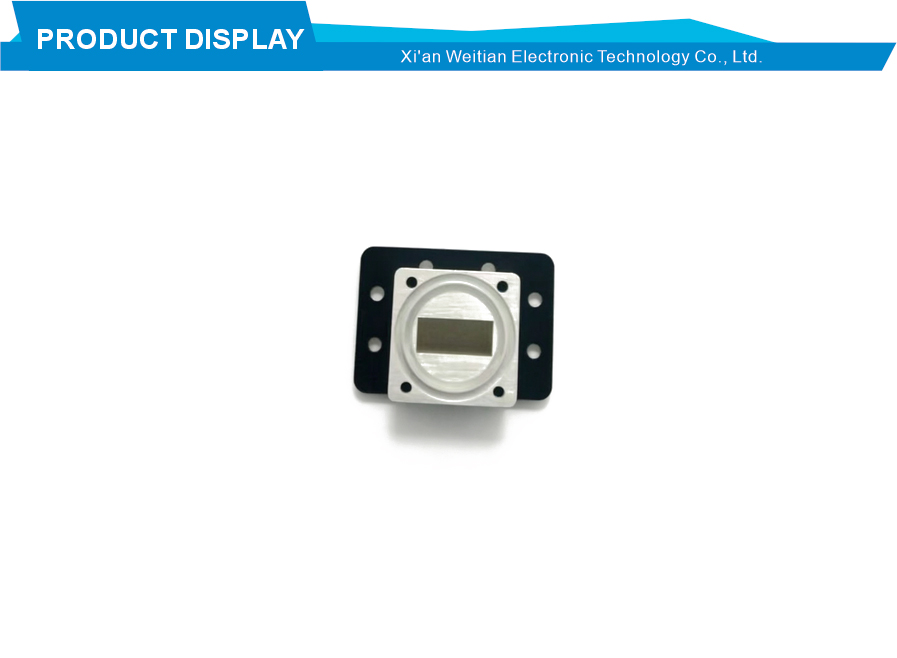

This product is a professional Waveguide Adapter designed for non adjacent waveguide transition between WR112 and WR51 rectangular waveguides. The adapter operates across the 14.5GHz to 16.2GHz frequency band in the Ku band range. As a Rectangular To Rectangular Adapter, it enables seamless interconnection between non adjacent waveguide sizes while maintaining good electrical performance. The adapter is constructed from aluminum with silver plating and finished with black paint for excellent conductivity and corrosion resistance. This component is essential for systems requiring mode conversion and port adaptation between different rectangular waveguide standards that are not directly adjacent in size. The WR112 to WR51 Non Adjacent Rectangular to Rectangular Waveguide Adapter is a key solution for engineers working with Ku band systems that need to interface different rectangular waveguide sections across multiple size standards.

This Rectangular to Rectangular Adapter delivers excellent electrical performance across its operating frequency range. The Voltage Standing Wave Ratio is rated at 1.3 or lower, ensuring good impedance matching with minimal signal reflection. The transition between WR112 and WR51 waveguide sizes is achieved through precision internal geometry that ensures smooth signal propagation. The operating frequency for non adjacent waveguide transitions is typically determined by the frequency range of the higher frequency waveguide and can be customized according to user requirements. The microwave signal generally enters through the smaller waveguide port. Since the output waveguide has a larger aperture, higher order modes may appear near the output port. This factor must be carefully considered when connecting subsequent components to ensure optimal system performance. The aluminum construction with silver plating provides superior conductivity and protects against oxidation, ensuring long term reliability. The black paint finish offers additional environmental protection. The low insertion loss characteristic of this Waveguide Adapter ensures efficient signal transmission through the transition with minimal power degradation.

One clear strength of this Waveguide Adapter is its ability to solve interconnection challenges between non adjacent rectangular waveguide standards. It is widely used in radar and communication RF system path adaptation, microwave heating equipment cavity links, microwave test platform component assembly, and various waveguide transition connections. The WR112 to WR51 transition is particularly suitable for Ku band microwave applications where non adjacent waveguide interfacing is required. The adapter maintains good phase response and low attenuation when properly matched to the system impedance. The standard flange interfaces ensure compatibility with common WR112 and WR51 rectangular waveguide components. This component is also available with custom options for frequency band, dimensions, and finish upon request. The Rectangular to Rectangular Adapter provides a practical solution for system integrators who need to combine components from different non adjacent waveguide standards without compromising signal quality.

In practical use, this Rectangular to Rectangular Adapter handles professional system integration tasks very well. For radar systems operating at Ku band frequencies, it connects different rectangular waveguide sections within the transmission chain. For satellite communication ground stations, it enables interface between non adjacent rectangular waveguide components with different size specifications. For microwave test platforms, it provides flexible interconnection between different waveguide standards during measurement setups. For industrial microwave heating equipment, it bridges rectangular waveguide sources to downstream components. The standard flange interfaces mate securely with common waveguide components. The silver plated aluminum construction provides excellent durability and conductivity. The mode conversion efficiency ensures reliable signal transmission through the transition. This Rectangular to Rectangular Adapter stands as a solid example of a well designed Waveguide Adapter for non adjacent waveguide transition and system interconnection applications at Ku band frequencies.
